Ibis Ripley V5 X0 Transmission AXS, I9 Carbon Wheels

Ibis Ripley V5 X0 Transmission AXS, I9 Carbon Wheels
  • Color: Green Flash
  • Color: Blue Hour
$9,599.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

All sizes come automatically stock with 29/29 setup. If you prefer 29/27.5 there is no upcharge. Just mention you preference at checkout.

Meet the Ripley, your new best friend for every trail adventure. The award-winning bike has been updated with more travel and slacker geometry, making it even more capable and fun. It rivals the speed of an e-bike uphill while offering snappy, playful performance with 130mm of ultra-efficient dw-link travel. Need to stash your snacks? The Ripley now features internal frame storage for all your stuff. Plus, with expanded size ranges, everyone gets the perfect fit. Whether you’re popping wheelies or conquering climbs, the Ripley is game.

*Specs may vary from image displayed*

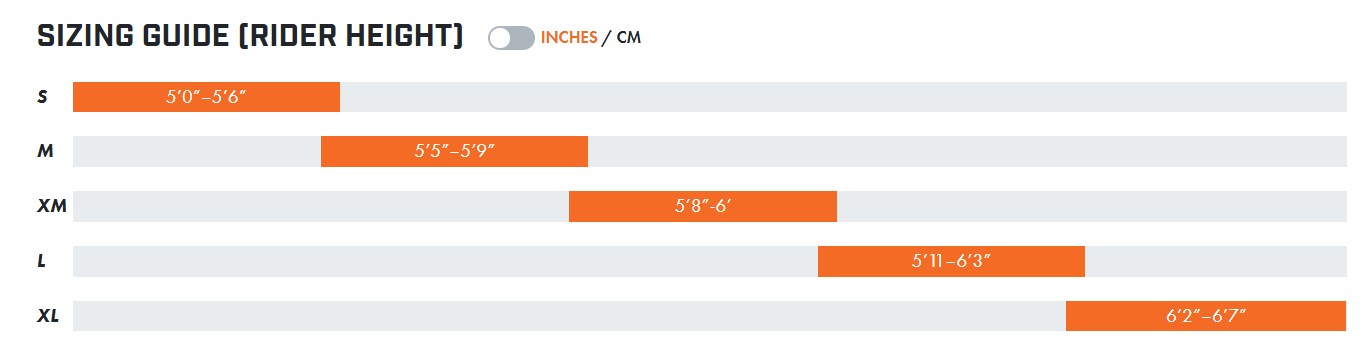

Sizes:
Frame SizeSmallMediumExtra MediumLargeX-Large
Seat Tube (mm)395 400416457477
Top Tube (mm)577 604629654684
Head Tube (mm)85 95110125140
Chainstay 29er (mm)436 436437440442
Chainstay MX (mm)433 433434436438
Seat Tube Angle77.4° 76.9°76.9°77.4°77.9°
Saddle Height For Seat Tube Angle (mm)650 700745790830
Head Tube Angle64.9° 64.9°64.9°64.9°64.9°
Wheelbase (mm)1187 1211124112791321
Stack (mm)613 619629640650
Reach (mm)440 460483511545
BB Drop 29er (mm)48 45423936
BB Drop MX (mm)28 25221916
BB Height (mm)326 329332335338
Standover (mm)680 721744759772
Recommended Seatpost Drop (mm)140 170185213213
Crank Length (mm)165 165170170170

Specs

Pedals Sold Separately
Fork Fox Float 34 Factory Series Grip X 140mm, 29”, 110x15
Hubs Front Hub Industry 9 hydra, 110x15, 32 Hole, Rear Hub Industry 9 hydra, 148x12, 32 Hole
Rims S35 CARBON RIM
Stem Blackbird, 35mm
Chain SRAM X0 Transmission
Frame Ripley V5
Tires Front Tire: Maxxis DHR2 29" x 2.4" Exo TR
Rear Tire: Maxxis Rekon 29" x 2.4" Exo TR
Brakes SRAM Code RSC, 4 Piston
Rotors SRAM Centerlock 180
Saddle WTB Silverado Ti 142
Spokes Sapim Dlight Double Butted
Wheels S35 29 Carbon Industry 9 Front Wheel 110, S35 29 Carbon Industry 9 Rear Wheel 148 w/ XD Driver
Headset Cane Creek 40: ZS44/ZS56
Crankset SRAM X0 Transmission, 30t Alloy Ring
Seatpost Bike Yoke Revive Dropper
Shifters SRAM AXS Controller
Chainrings 30t Alloy Ring
Handlebars Blackbird Hi Fi, 35mm, 800mm
Rear Shock Fox Float Factory Series, DPS with EVOL, 210 x 52.5
Tape/Grips Lizard Skin Charger
Brake Levers SRAM G2
Bottom Bracket SRAM DUB BSA
Rear Derailleur SRAM X0 Transmission AXS
Accessories & Extras Cotopaxi Stow Bags
Cassette/Freewheel SRAM X0 Transmission 10-52

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Green Flash / Medium/Large / 29-inch 840345310972 RLC3GNSX0I93525 210000021987
Green Flash / Large / 29-inch 840345311047 RLC4GNSX0I93525 210000022005
Green Flash / Small / 29-inch 840345310804 RLC1GNSX0I93525 210000021951
Green Flash / Medium / 29-inch 840345310903 RLC2GNSX0I93525 210000021969
Green Flash / X-Large / 29-inch 840345311115 RLC5GNSX0I93525 210000022023
Blue Hour / X-Large / 29-inch 840345311450 RLC5BUSX0I93525 210000022014
Blue Hour / Small / 29-inch 840345310781 RLC1BUSX0I93525 210000021942
Blue Hour / Large / 29-inch 840345311382 RLC4BUSX0I93525 210000021996
Blue Hour / Medium/Large / 29-inch 840345311313 RLC3BUSX0I93525 210000021978
Blue Hour / Medium / 29-inch 840345311245 RLC2BUSX0I93525 210000021960
