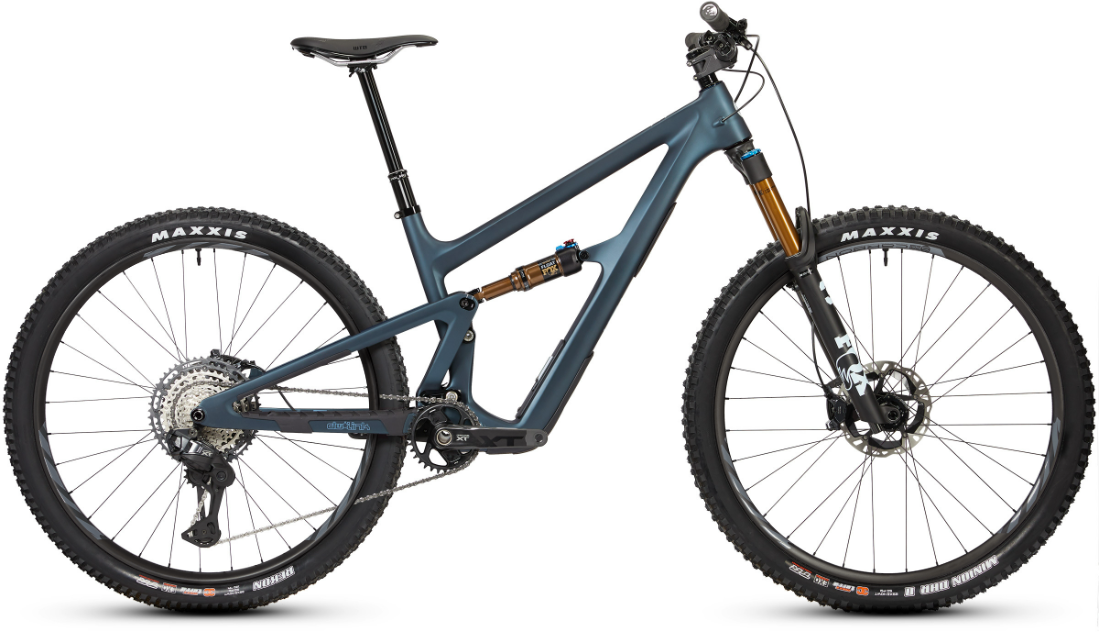

Ibis Ripley V5 XT Di2 S28 I9 Hydra 2 Wheels

Ibis Ripley V5 XT Di2 S28 I9 Hydra 2 Wheels
$8,649.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

IBIS Carbon Ripley V5 Now Gets Upgrade to OneUp V2 35mm Rise Carbon Bar For FREE!!!

Meet the Ripley, your new best friend for every trail adventure. The award-winning bike has been updated with more travel and slacker geometry, making it even more capable and fun. It rivals the speed of an e-bike uphill while offering snappy, playful performance with 130mm of ultra-efficient dw-link travel. Need to stash your snacks? The Ripley now features internal frame storage for all your stuff. Plus, with expanded size ranges, everyone gets the perfect fit. Whether you’re popping wheelies or conquering climbs, the Ripley is game.

Size Specific Everything
Every rider deserves the same great ride feel, no matter their height or proportions. We use size specific seat tube angles and suspension kinematics to bring incredible balance and speed to all size riders. Even chainstay length and bottom bracket height are tailored to each frame size.

5 Sizes
We've added a third size in the middle of the bell curve to provide a fit that’s just right. With 80% of our riders falling between 5’5” and 6’0”, we introduced a new "Extra-Medium" size. The extra-medium (size 3) now sits in the middle of our size range, while our size five remains the traditional XL.

Flip It
We’ve added more adjustability with a new flip chip - now you can run 29” or 27.5”/29” mixed (MX) wheels on all sizes without compromising the geometry. The Ripley ships with 29” wheels.

DW-Link Suspension
We continue to use the critically acclaimed dw-link suspension platform known for its efficient climbing and excellent downhill performance; it sets the standard for modern mountain bikes.

Our size-specific kinematics make sure every size bike pedals amazing while still keeping things ferociously smooth on challenging trails.

Internal Frame Storage
Get that gear off your back and into your bike with our frame storage system. The latch operates effortlessly, even in cold, muddy conditions while wearing gloves. The door is water-resistant, rattle-free, and robust.

We’ve partnered with Cotopaxi to craft a set of two internal bags for your snacks, tools, or whatever. Cotopaxi is known for high-quality construction and sustainable practices; the bags are crafted from remnants and dead stock, making each bag colorful and unique.

Lifetime Warranty
If it's our fault, we'll fix it. Simple as that.

*Specs may vary from image displayed*

Geometry
Sizes:
Nominal SizeSMMDXMLGXL
Seat Tube A 395 400 415 457 477
Top Tube B 577 604 629 654 684
Head Tube C 85 95 110 125 140
Chainstay 29" D 436 436 437 440 442
Seat Tube Angle E 77.4° 76.9° 76.9° 77.4° 77.9°
Saddle Height for Seat Tube Angle F 650 700 745 790 830
Head Tube Angle G 64.9° 64.9° 64.9° 64.9° 64.9°
Wheelbase H 1187 1211 1241 1279 1321
Stack I 613 619 629 640 650
Reach J 440 460 483 511 545
BB Drop 29" K 48 45 42 39 36
BB Drop MX K 28 25 22 19 16
BB Height* 326 329 332 335 338
Standover L 680 721 744 759 772
Recommended Seatpost Drop 140 170 185 213 213
Crank Length 165 165 170 170 170
Tire Size 2.35-2.5" 2.35-2.5" 2.35-2.5" 2.35-2.5" 2.35-2.5"
Water Bottle Size 1 x 22oz 1 x 26oz 1 x 26oz 1 x 26oz 1 x 26oz
Sizes:
Small5’0”–5’6”
Medium 5’5”–5’9”
X-Medium 5’8”-6’
Large 5’11–6’3”
X-Large 6’2”–6’7”

Specs

Frame Ripley V5
Fork Fox Float 36 SL Factory Series Grip X 140mm, 29”, 110x15
Rear Shock Fox Float Factory Series with EVOL, 210 x 52.5
Wheels Ibis S28 Carbon Rims, 29", Industry 9 Hydra 2
Rims S28 Carbon Rims
Hubs Industry 9 Hydra 2
Spokes Sapim CX-Ray Spoke
Tires Front Tire: Maxxis DHR2 29" x 2.4" Exo TR, Rear Tire: Maxxis Dissector 29" x 2.4" Exo TR
Bottom Bracket Shimano XT MT800
Crankset Shimano XT M8120 24mm spindle
Chainrings 30t Alloy Ring
Shifters Shimano XT Di2 Shift Switch
Rear Derailleur Shimano XT, M8100
Cassette/Freewheel Shimano XT, M8200, 10-51
Chain Shimano XT M8100
Brakes Shimano XT M8120 4 Piston
Rotors Shimano CL-800 180/160
Brake Levers Shimano XT M8100
Handlebars OneUp V2 35mm Rise Carbon Bar (Free Upgrade)
Tape/Grips Lizard Skin Strata Single Clamp Lock-On
Stem Ibis BLK BRD S/M:35mm, XM/L/XL:50mm
Headset Cane Creek 40: ZS44/ZS56
Seatpost Bike Yoke Revive Dropper S: 125mm, M: 160mm, XM: 185mm, L–XL: 213mm
Saddle WTB Silverado, 142mm
Accessories & Extras Stow Bags

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Blue Hour / Small / 29-inch 840345317537 RLC1BUSXTi92801 210000030757
Blue Hour / Medium / 29-inch 840345317650 RLC2BUSXTi92801 210000030761
Blue Hour / X-Medium / 29-inch 840345317773 RLC3BUSXTi92801 210000030765
Blue Hour / Large / 29-inch 840345317896 RLC4BUSXTi92801 210000030769
Blue Hour / X-Large / 29-inch 840345318015 RLC5BUSXTi92801 210000030773
Green Flash / Small / 29-inch 840345317599 RLC1GNSXTi92801 210000030759
Green Flash / Medium / 29-inch 840345317711 RLC2GNSXTi92801 210000030763
Green Flash / X-Medium / 29-inch 840345317834 RLC3GNSXTi92801 210000030767
Green Flash / Large / 29-inch 840345317957 RLC4GNSXTi92801 210000030771
Green Flash / X-Large / 29-inch 840345318077 RLC5GNSXTi92801 210000030775
