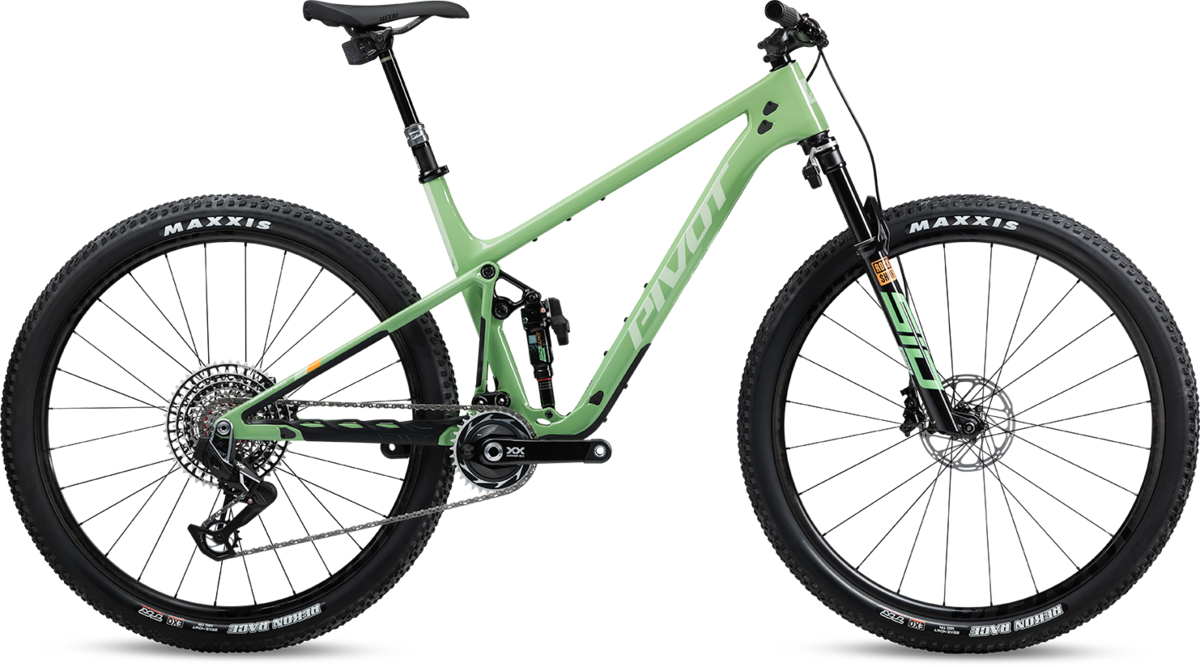

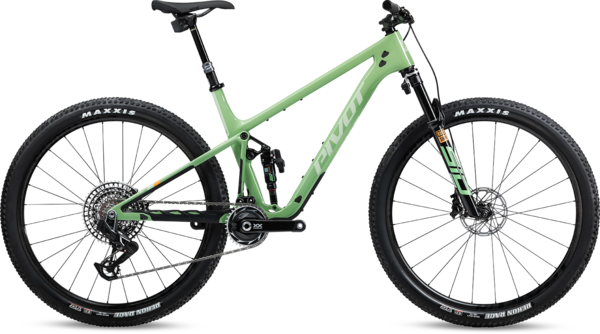

Pivot Cycles Mach 4 SL Team XX SL Eagle Transmission Flight Attendant

Pivot Cycles Mach 4 SL Team XX SL Eagle Transmission Flight Attendant
  • Color: Seafoam Green
  • Color: Ice Blue
  • Color: Midnight Sky
$13,499.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

The all-new Mach 4 SL; a podium seeking missile crafted from the ground up as a testament to speed without compromise. Designed to win gold and slaughter KOMs, all while delivering an otherworldly ride quality, telepathic handling, and a potent blend of acceleration and tractability. The new Mach 4 SL features Flight Attendant and World Cup builds, for the fastest laps, with no compromises.

- XC-Tuned DW-Link™ Suspension

- New XC Adapted Travel-Adjustable Flip-Chip

- XC builds featuring Fox Factory, Performance or RockShox Flight Attendant with 106mm or 115mm adjustable rear travel paired with a 120mm fork

- World Cup Builds feature the efficient Fox Factory Float SL Shock with 95mm or 103mm adjustable travel paired with the ultra-light 100mm Fox Step Cast 32 fork

- RockShox Flight Attendant builds feature the cutting edge wireless smart suspension and AXS components to adapt for the best performance for your riding

- Lighter, More Durable High-Load Enduro Max bearings

- Size-Specific Carbon Layup Across Size Range

- Low Standover Fits Riders 4'10" to 6' 7"

- Large Water Bottle Clearance on All Sizes

- Pivot’s full carbon frames feature size-specific ride tuning, leading edge carbon fiber materials, and Pivot's proprietary hollow core molding technology to ensure that every rider from 4'10" to 6'7" has a bike that feels perfect and performs at the optimum level for their size

- Injection Molded Rubberized Frame Protection

- Full Internal Routing with Pivot Cable Port System

- Pivot Dock Tool System Compatible Under Top Tube and BB

- Simplified Twistloc Suspension Lockout (available on select builds)

Geometry

120mm Travel ForkXSSMMDLGXL
ASet Tube Length (C-T) 35.5 cm 39.4 cm 41.9 cm 46.0 cm 50.5 cm
BTop Tube Length 56.8 cm 58.4 cm 61.3 cm 64.2 cm 66.5 cm
CHed Tube Length 8.5 cm 9.0 cm 10.5 cm 12.0 cm 13.5 cm
DHed Tube Angle 66.7° 66.7° 66.7° 66.7° 66.7°
ESet Tube ngle (Eff.) 74.7° 74.7° 74.7° 74.7° 74.7°
FChainstay Length 43.2 cm 43.2 cm 43.2 cm 43.2 cm 43.2 cm
GBottom Bracket Height 33.6 cm 33.6 cm 33.6 cm 33.6 cm 33.6 cm
HBottom Bracket Drop 3.8 cm 3.6 cm 3.6 cm 3.6 cm 3.6 cm
IStndover 64.6 cm 65.6 cm 68.4 cm 67.9 cm 70.9 cm
JWheelbse 111.1 cm 112.8 cm 115.9 cm 118.9 cm 121.5 cm
Rech 39.7 cm 41.2 cm 43.7 cm 46.2 cm 48.2 cm
Stck 58.6 cm 58.9 cm 60.3 cm 61.7 cm 63.1 cm
Sizes:
100mm Travel ForkXSSMMDLGXL
A Seat Tube Length (C-T) 35.5 cm 39.4 cm 41.9 cm 46.0 cm 50.5 cm
B Top Tube Length 56.5 cm 58.0 cm 60.9 cm 63.8 cm 66.2 cm
C Head Tube Length 8.5 cm 9.0 cm 10.5 cm 12.0 cm 13.5 cm
D Head Tube Angle 68.0° 68.0° 68.0° 68.0° 68.0°
E Seat Tube Angle (Eff.) 76.0° 76.0° 76.0° 76.0° 76.0°
F Chainstay Length 43.2 cm 43.2 cm 43.2 cm 43.2 cm 43.2 cm
G Bottom Bracket Height 32.7 cm 32.9 cm 32.9 cm 32.9 cm 32.9 cm
H Bottom Bracket Drop 4.7 cm 4.5 cm 4.5 cm 4.5 cm 4.5 cm
I Standover 63.7 cm 64.4 cm 67.2 cm 66.8 cm 69.8 cm
J Wheelbase 110.1 cm 111.8 cm 114.9 cm 117.9 cm 120.5 cm
Reach 41.0 cm 42.5 cm 45.0 cm 47.5 cm 49.5 cm
Stack 57.7 cm 58.0 cm 59.4 cm 60.8 cm 62.2 cm
To ensure the best sizing, we recommend that you visit your local Pivot dealer to get a professional fit and refer to our geometry chart to check your measurements. However, we can provide a rough guideline:
Sizes:
Frame SizeRider Height (in)
X-Small 4'10" - 5'4"
Small 5'4" - 5'8"
Medium 5'8" - 5'11"
Large 5'11" - 6'2"
X-Large 6' - 6'7"
Be sure to also consult our dropper post fit guide when making your selection.

Specs

Frame Mach 4 SL
Fork Rock Shox SID Ultimate Flight Attendant 29", 44mm offset, 120mm
Rear Shock Rock Shox SIDLuxe Ultimate Flight Attendant
Wheels Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29" 15x110 F/12x148 R
Tires Maxxis Rekon 29X2.4 3C TR, EXO, 120TPI/Maxxis Rekon Race 29" x 2.4" TR, EXO, 120 TPI
Crankset Sram XX SL Eagle Power Meter DUB 34t
Shifters Sram AXS Pod Ultimate Controller
Rear Derailleur Sram XX SL Eagle AXS 12-Speed
Cassette/Freewheel Sram XX SL 1299 10-52t
Chain Sram XX SL Eagle 12-Speed Flat Top
Brakes Sram Level Ultimate Stealth 2-piston
Rotors Sram Centerline CenterLock - 180mm/Sram Centerline CenterLock - 160mm
Handlebars Phoenix Team Flat Carbon - 760mm
Tape/Grips Phoenix Factory Lock-On
Stem Phoenix Team XC/Trail - 60mm
Headset Pivot Precision Sealed Integrated Cartridge
Seatpost Rock Shox Reverb AXS 100mm (XS), 125mm (SM-LG), 150mm (XL)
Saddle Phoenix WTB World Cup Volt Carbon Medium Width

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Seafoam Green / X-Small / 29-inch 196338189156 004SLV329CXXB--GSFXSDRPSN 210000021713
Seafoam Green / Small / 29-inch 196338189118 004SLV329CXXB--GSFSMDRPSN 210000021716
Seafoam Green / Medium / 29-inch 196338189095 004SLV329CXXB--GSFMDDRPSN 210000021714
Seafoam Green / Large / 29-inch 196338189071 004SLV329CXXB--GSFLGDRPSN 210000021715
Seafoam Green / X-Large / 29-inch 196338189132 004SLV329CXXB--GSFXLDRPSN 210000021717
Ice Blue / X-Small / 29-inch 196338188951 004SLV329CXXB--BICXSDRPSN 210000021698
Ice Blue / Small / 29-inch 196338188913 004SLV329CXXB--BICSMDRPSN 210000021699
Ice Blue / Medium / 29-inch 196338189194 004SLV329CXXB--BICMDDRPSN 210000021706
Ice Blue / Large / 29-inch 196338189170 004SLV329CXXB--BICLGDRPSN 210000021703
Ice Blue / X-Large / 29-inch 196338188937 004SLV329CXXB--BICXLDRPSN 210000021702
Midnight Sky / X-Small / 29-inch 196338189057 004SLV329CXXB--BLKXSDRPSN 210000021708
Midnight Sky / Small / 29-inch 196338189019 004SLV329CXXB--BLKSMDRPSN 210000021709
Midnight Sky / Medium / 29-inch 196338188999 004SLV329CXXB--BLKMDDRPSN 210000021710
Midnight Sky / Large / 29-inch 196338188975 004SLV329CXXB--BLKLGDRPSN 210000021711
Midnight Sky / X-Large / 29-inch 196338189033 004SLV329CXXB--BLKXLDRPSN 210000021712
