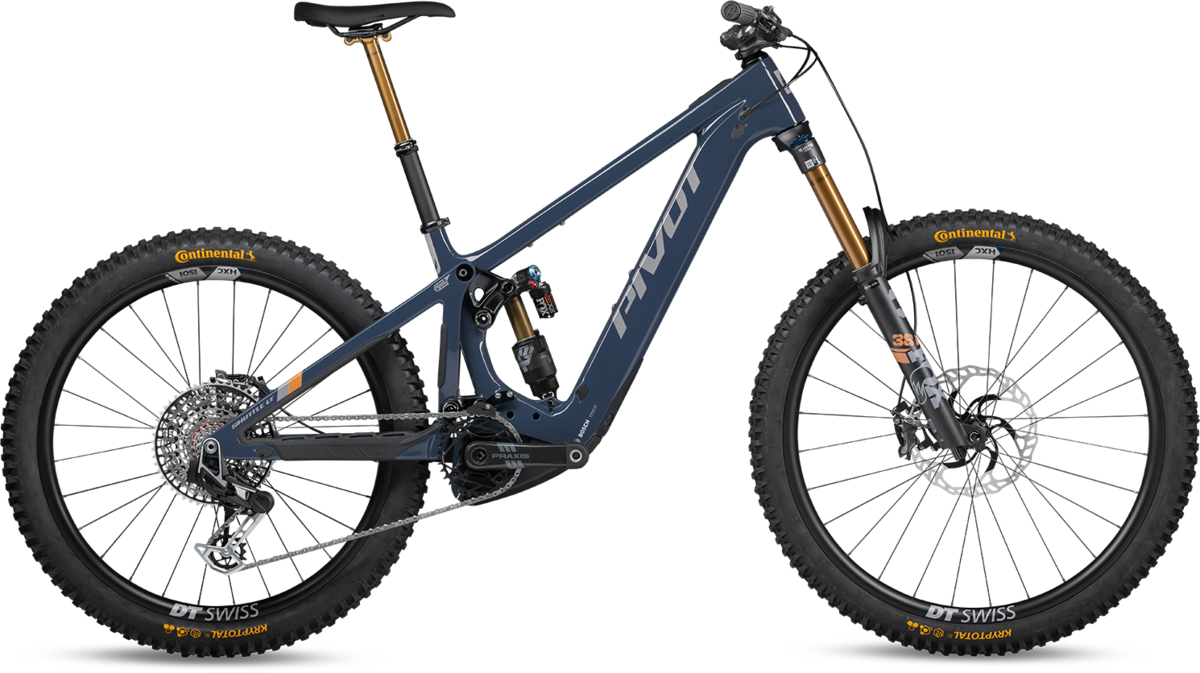

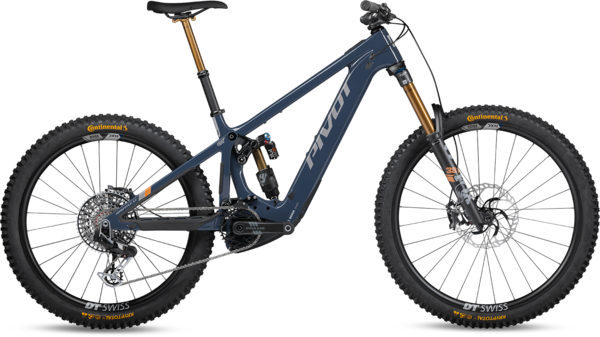

Pivot Cycles Shuttle LT Team XX Eagle Transmission

The Shuttle LT is engineered to dominate every climb and descent with precision, power, and finesse. Designed for those who thrive on long-travel eMTB adventures, this bike unlocks new possibilities with the Bosch Performance CX Race Limited Edition drive unit, delivering an incredible 600 watts of max power. Paired with a 750 Wh battery, and expandable to 1000 Wh using the PowerMore range extender, the Shuttle LT makes all-day rides an easy reality. The renowned dw-Link suspension system ensures excellent traction on climbs while offering rock-solid control on the most technical descents, creating an unbeatable all-around performer.

Components
Rear Shock: Fox Factory Float X2
Fork: Fox Factory 38 29”, 44mm offset, GRIP X2 - 170mm
Headset: Pivot Precision Sealed Cartridge
Rear Derailleur: Sram XX Eagle Transmission 12-Speed
Shifter: Sram AXS Pod Controller
Cassette: Sram XX 1297 Eagle Transmission 10-52t
Chain: Sram XX Eagle Transmission Flattop 12-Speed
Crankset: Praxis Carbon eCranks E-MTB 34t - 160mm
Brakes: Shimano XTR M9120 4-piston
Rotors: Front: Galfer Wave 6 Bolt - 223mm Rear: Galfer Wave 6 Bolt - 203mm
Drive Unit: Bosch Performance CX Race Edition
Battery: BOSCH Powertube 750wh
Handlebar: Phoenix Race Low Rise Carbon 780mm (SM-MD) | 800mm (LG-XL)
Grips: Phoenix Factory Lock-On
Stem: Phoenix Team Enduro/Trail - 45mm
Seatpost: Fox Transfer Factory Series 150mm (SM) | 175mm (MD-LG) | 200mm (XL)
Saddle: Phoenix WTB Volt Team (Medium Width)
Wheels: DT Swiss Hybrid HXC1501 Carbon, 30mm - Mixed Front: 15x110 | Rear: 12x157
Tires: Front: Continental Kryptotal-F 29” x 2.4” Soft Compound Enduro Casing Rear: Continental Kryptotal-R 27.5” x 2.6” Soft Compound Enduro Casing
