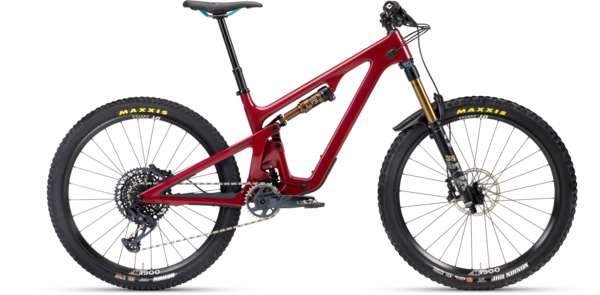

Yeti Cycles SB135 C-Series C2 GX Factory

Yeti Cycles SB135 C-Series C2 GX Factory
  • Color: Cherry
  • Color: Rhino
  • Color: Turquoise
$5,280.00
$6,600.00
Color:
Size: Select size
Wheel Size: 27.5-inch
Please select options Unavailable

Details

Begging for your input, chomping to respond. Flick it, pedal it, pump it to the moon. A stoke-making mutation of fun-focused dna, blinding proof that less can be a whole lot more. Come out to play. You bet your ass the sb135 is still down.

Frame SizeXSSMMDLGXL
Steat Tube Length

345mm

13.6in

365mm

14.4in

400mm

15.7in

440mm

17.3in

470mm

18.5in
Toptube Length

534mm

21in

566mm

22.3in

598mm

23.5in

620mm

24.4in

647mm

25.5in
Headtube Angle 65.5 65.4 65.4 65.4 65.4
Effective Seat Tube Angle 77 77 77 77 76.9
Actual Seat Tube Angle 72.1 72.4 72 72.1 72.3
Chainstay Length

429mm

16.9in

431mm

17in

433mm

17in

435mm

17.1in

437mm

72.3in
Wheelbase

1128mm

44.9in

1164mm

45.8in

1199mm

47.2in

1225mm

48.2in

1257mm

49.5in
Estimated BB Height

337mm

13.3in

337mm

13.3in

337mm

13.3in

337mm

13.3in

337mm

13.3in
Standover

675mm

26.6in

678mm

26.7in

714mm

28.1in

718mm

28.2in

722mm

28.4in
Headtube Length

92mm

3.6in

101mm

4.0in

107mm

4.2in

118mm

4.6in

129mm

5.1in
Axel To Crown

548mm

21.6in

548mm

21.6in

548mm

21.6in

548mm

21.6in

548mm

21.6in
Offset

37mm

1.5in

37mm

1.5in

37mm

1.5in

37mm

1.5in

37mm

1.5in
Stack

583mm

23.0in

592mm

23.3in

597mm

23.5in

606mm

23.9in

616mm

24.3in
Reach

400mm

15.7in

430mm

16.9in

460mm

18.1in

479mm

18.9in

504mm

19.9in
Front Center

699mm

27.5in

733mm

28.9in

766mm

30.1in

790mm

31.1in

820mm

32.3in
Verticle Fork Travel

145mm

5.7in

145mm

5.7in

145mm

5.7in

145mm

5.7in

145mm

5.7in
X-Small4'10" - 5'3"
Small 5'1" - 5'7"
Medium 5'5" - 5'11"
Large 5'10" - 6'3"
X-Large 6'1" - 6'7"

Specs

Frame C/Series carbon fiber frame, Switch Infinity suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Fork FOX FACTORY 36/150MM
Rear Shock FOX FACTORY FLOAT
Wheels DT SWISS M1900 30MM
Tires MAXXIS MINION DHF 2.6 EXO / MAXXIS REKON 2.6 EXO
Bottom Bracket SRAM DUB BSA 73
Crankset SRAM GX EAGLE 30T 170MM
Shifters SRAM GX EAGLE
Rear Derailleur SRAM GX EAGLE
Cassette/Freewheel SRAM GX EAGLE 1275 10-52
Chain SRAM GX EAGLE
Brakes SRAM G2 R
Rotors SRAM CENTERLINE 180/SRAM CENTERLINE 180
Handlebars BURGTEC RIDE WIDE ALLOY ENDURO 35X760MM
Tape/Grips ODI ELITE PRO
Stem BURGTEC ENDURO MK3 35X50MM
Headset CANE CREEK 40 INTEGRATED
Seatpost ONEUP DROPPER POST 31.6MM / XS-SM: 150MM, MD: 180MM, LG-XL: 210MM
Saddle SILVERADO CUSTOM

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Cherry / X-Small / 27.5-inch 786044581766 B25135CXSPCYFAC026500 210000016152
Cherry / Small / 27.5-inch 786044581582 B25135CSMPCYFAC026500 210000016158
Cherry / Medium / 27.5-inch 786044581469 B25135CMDPCYFAC026500 210000016164
Cherry / Large / 27.5-inch 786044581346 B25135CLGPCYFAC026500 210000016170
Cherry / X-Large / 27.5-inch 786044581643 B25135CXLPCYFAC026500 210000016176
Rhino / X-Small / 27.5-inch 786044581780 B25135CXSPRIFAC026500 210000016108
Rhino / Small / 27.5-inch 786044581605 B25135CSMPRIFAC026500 210000016114
Rhino / Medium / 27.5-inch 786044581506 B25135CMDPRIFAC026500 210000016120
Rhino / Large / 27.5-inch 786044581384 B25135CLGPRIFAC026500 210000016126
Rhino / X-Large / 27.5-inch 786044581681 B25135CXLPRIFAC026500 210000016132
Turquoise / X-Small / 27.5-inch 786044581803 B25135CXSPTUFAC026500 210000022587
Turquoise / Small / 27.5-inch 786044581629 B25135CSMPTUFAC026500 210000016192
Turquoise / Medium / 27.5-inch 786044581544 B25135CMDPTUFAC026500 210000016208
Turquoise / Large / 27.5-inch 786044581421 B25135CLGPTUFAC026500 210000016216
Turquoise / X-Large / 27.5-inch 786044581728 B25135CXLPTUFAC026500 210000016224
