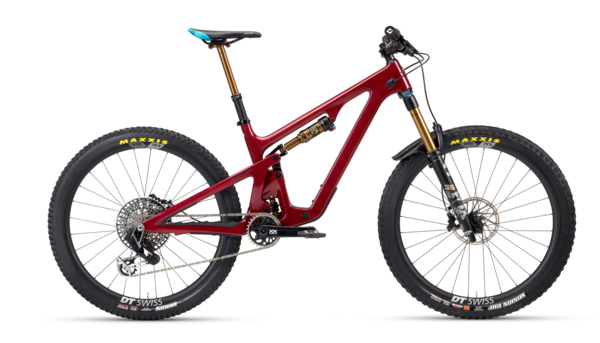

Yeti Cycles SB135 T-Series T4 XX T-Type EXC
Details
Begging for your input, chomping to respond. Flick it, pedal it, pump it to the moon. A stoke-making mutation of fun-focused dna, blinding proof that less can be a whole lot more. Come out to play. You bet your ass the sb135 is still down.
| Frame Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Steat Tube Length |
345mm 13.6in |
365mm 14.4in |
400mm 15.7in |
440mm 17.3in |
470mm 18.5in |
| Toptube Length |
534mm 21in |
566mm 22.3in |
598mm 23.5in |
620mm 24.4in |
647mm 25.5in |
| Headtube Angle | 65.5 | 65.4 | 65.4 | 65.4 | 65.4 |
| Effective Seat Tube Angle | 77 | 77 | 77 | 77 | 76.9 |
| Actual Seat Tube Angle | 72.1 | 72.4 | 72 | 72.1 | 72.3 |
| Chainstay Length |
429mm 16.9in |
431mm 17in |
433mm 17in |
435mm 17.1in |
437mm 72.3in |
| Wheelbase |
1128mm 44.9in |
1164mm 45.8in |
1199mm 47.2in |
1225mm 48.2in |
1257mm 49.5in |
| Estimated BB Height |
337mm 13.3in |
337mm 13.3in |
337mm 13.3in |
337mm 13.3in |
337mm 13.3in |
| Standover |
675mm 26.6in |
678mm 26.7in |
714mm 28.1in |
718mm 28.2in |
722mm 28.4in |
| Headtube Length |
92mm 3.6in |
101mm 4.0in |
107mm 4.2in |
118mm 4.6in |
129mm 5.1in |
| Axel To Crown |
548mm 21.6in |
548mm 21.6in |
548mm 21.6in |
548mm 21.6in |
548mm 21.6in |
| Offset |
37mm 1.5in |
37mm 1.5in |
37mm 1.5in |
37mm 1.5in |
37mm 1.5in |
| Stack |
583mm 23.0in |
592mm 23.3in |
597mm 23.5in |
606mm 23.9in |
616mm 24.3in |
| Reach |
400mm 15.7in |
430mm 16.9in |
460mm 18.1in |
479mm 18.9in |
504mm 19.9in |
| Front Center |
699mm 27.5in |
733mm 28.9in |
766mm 30.1in |
790mm 31.1in |
820mm 32.3in |
| Verticle Fork Travel |
145mm 5.7in |
145mm 5.7in |
145mm 5.7in |
145mm 5.7in |
145mm 5.7in |
| X-Small | 4'10" - 5'3" |
|---|---|
| Small | 5'1" - 5'7" |
| Medium | 5'5" - 5'11" |
| Large | 5'10" - 6'3" |
| X-Large | 6'1" - 6'7" |
Specs
| Frame | TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. |
|---|---|
| Fork | FOX FACTORY 36 FIT4 |
| Rear Shock | FOX FACTORY FLOAT |
| Wheels | RACEFACE ARC OFFSET 30MM/DT SWISS 350 |
| Tires | MAXXIS MINION DHF 2.6 EXO / MAXXIS REKON 2.6 EXO |
| Bottom Bracket | SRAM DUB BSA 73 |
| Crankset | SRAM XX EAGLE TRANSMISSION 30T 170MM |
| Shifters | SRAM AXS POD CONTROLLER |
| Rear Derailleur | SRAM XX EAGLE AXS TRANSMISSION |
| Cassette/Freewheel | SRAM XX EAGLE TRANSMISSION 10-52 |
| Chain | SRAM XX EAGLE TRANSMISSION FLATTOP |
| Brakes | SRAM G2 ULTIMATE |
| Rotors | SRAM CENTERLINE 180/SRAM CENTERLINE 180 |
| Handlebars | YETI CARBON 35X760MM |
| Tape/Grips | ODI ELITE PRO |
| Stem | BURGTEC ENDURO MK3 CNC 35X50MM |
| Headset | CANE CREEK 110 INTEGRATED |
| Seatpost | FOX TRANSFER FACTORY 31.6MM / XS: 125MM, SM: 150MM, MD: 175MM, LG-XL: 200MM |
| Saddle | SILVERADO CUSTOM |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Cherry / X-Small / 27.5-inch | 786044582510 | B25135TXSPCYFATE465W0 | 210000016054 |
| Cherry / Small / 27.5-inch | 786044582213 | B25135TSMPCYFATE465W0 | 210000016063 |
| Cherry / Medium / 27.5-inch | 786044582039 | B25135TMDPCYFATE465W0 | 210000016072 |
| Cherry / Large / 27.5-inch | 786044581858 | B25135TLGPCYFATE465W0 | 210000016081 |
| Cherry / X-Large / 27.5-inch | 786044582336 | B25135TXLPCYFATE465W0 | 210000016090 |
| Rhino / X-Small / 27.5-inch | 786044582558 | B25135TXSPRIFATE465W0 | 210000022591 |
| Rhino / Small / 27.5-inch | 786044582251 | B25135TSMPRIFATE465W0 | 210000016001 |
| Rhino / Medium / 27.5-inch | 786044582091 | B25135TMDPRIFATE465W0 | 210000016010 |
| Rhino / Large / 27.5-inch | 786044581919 | B25135TLGPRIFATE465W0 | 210000016019 |
| Rhino / X-Large / 27.5-inch | 786044582398 | B25135TXLPRIFATE465W0 | 210000016028 |
| Turquoise / X-Small / 27.5-inch | 786044582596 | B25135TXSPTUFATE465W0 | 210000015932 |
| Turquoise / Small / 27.5-inch | 786044582299 | B25135TSMPTUFATE465W0 | 210000015941 |
| Turquoise / Medium / 27.5-inch | 786044582152 | B25135TMDPTUFATE465W0 | 210000015950 |
| Turquoise / Large / 27.5-inch | 786044581971 | B25135TLGPTUFATE465W0 | 210000015959 |
| Turquoise / X-Large / 27.5-inch | 786044582459 | B25135TXLPTUFATE465W0 | 210000015968 |
