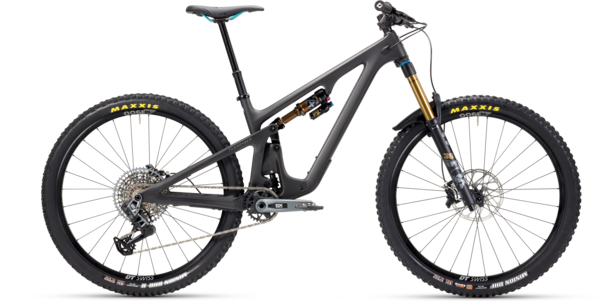

Yeti Cycles SB140 C-Series LR C3 GX T-Type Factory
Details
Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rail, and the air. The utterly unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule. The mountain bike.
| Frame Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Seat Tube Length |
365mm 14.4in |
400mm 15.7in |
440mm 17.3in |
470mm 18.5in |
485mm 19.1in |
| Effective Toptube Length |
571mm 22.5in |
602mm 23.7in |
623mm 24.5in |
650mm 25.6in |
670mm 26.4in |
| Headtube Angle (degrees) | 65.4 | 65.4 | 65.4 | 65.4 | 65.4 |
| Effective Seat Tube Angle (degrees) | 77.5 | 77.5 | 77.5 | 77.4 | 77.4 |
| Actual Seat Tube Angle (degrees) | 72.2 | 72.6 | 72.8 | 73.2 | 73.7 |
| Chainstay Length |
436mm 17.2in |
438mm 17.2in |
440mm 17.3in |
442mm 17.4in |
444mm 17.5in |
| Wheelbase |
1184mm 46.6in |
1217mm 47.9in |
1242mm 48.9in |
1273mm 50.1in |
1300mm 51.2in |
| Estimated BB Height |
339mm 13.3in |
339mm 13.3in |
339mm 13.3in |
339mm 13.3in |
339mm 13.3in |
| Standover |
722mm 28.4in |
729mm 28.7in |
733mm 28.9in |
735mm 28.9in |
740mm 29.1in |
| Headtube Length |
92mm 3.6in |
95mm 3.7in |
100mm 4.0in |
112mm 4.4in |
134mm 5.3in |
| Axle to Crown |
565mm 22.2in |
565mm 22.2in |
565mm 22.2in |
565mm 22.2in |
565mm 22.2in |
| Offset |
44mm 1.7in |
44mm 1.7in |
44mm 1.7in |
44mm 1.7in |
44mm 1.7in |
| Stack |
614mm 24.2in |
617mm 24.3in |
621mm 24.5in |
631mm 24.9in |
651mm 25.6in |
| Reach |
435mm 17.1in |
465mm 18.3in |
485mm 19.1in |
510mm 20.1in |
525mm 20.7in |
| Front Center |
748mm 29.5in |
779mm 30.7in |
802mm 31.6in |
831mm 32.7in |
856mm 33.7in |
| Vertical Fork Travel |
136mm 5.4in |
136mm 5.4in |
136mm 5.4in |
136mm 5.4in |
136mm 5.4in |
| Small | 5'1" - 5'7" |
|---|---|
| Medium | 5'5" - 5'11" |
| Large | 5'10" - 6'3" |
| X-Large | 6'1" - 6'7" |
| XX-Large | 6'5" - 6'11" |
Specs
| Frame | C/Series carbon fiber frame, Switch Infinity suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. |
|---|---|
| Fork | FOX PERFORMANCE 36/160MM |
| Rear Shock | FOX PERFORMANCE FLOAT X |
| Wheels | DT SWISS M1900 30MM |
| Tires | MAXXIS MINION DHF 2.5 EXO / MAXXIS MINION DHR II 2.4 EXO |
| Bottom Bracket | SRAM DUB BSA 73 |
| Crankset | SRAM GX EAGLE TRANSMISSION 30T 170MM |
| Shifters | SRAM AXS POD CONTROLLER |
| Rear Derailleur | SRAM GX EAGLE AXS TRANSMISSION |
| Cassette/Freewheel | SRAM GX EAGLE TRANSMISSION 10-52 |
| Chain | SRAM GX EAGLE TRANSMISSION FLATTOP |
| Brakes | SRAM CODE R |
| Rotors | SRAM CENTERLINE 200/SRAM CENTERLINE 180 |
| Handlebars | BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM |
| Tape/Grips | ODI ELITE PRO |
| Stem | BURGTEC ENDURO MK3 35X50MM |
| Headset | CANE CREEK 40 INTEGRATED |
| Seatpost | ONEUP DROPPER POST 31.6MM / SM: 150MM, MD: 180MM, LG-XXL: 210MM |
| Saddle | SILVERADO CUSTOM |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Black/Grey Decal / Small / 29-inch | 786044583104 | B25149CSMRGDFXCE66600 | 210000023967 |
| Black/Grey Decal / Medium / 29-inch | 786044582923 | B25149CMDRGDFXCE66600 | 210000023973 |
| Black/Grey Decal / Large / 29-inch | 786044582749 | B25149CLGRGDFXCE66600 | 210000023979 |
| Black/Grey Decal / X-Large / 29-inch | 786044583289 | B25149CXLRGDFXCE66600 | 210000023985 |
| Black/Grey Decal / XX-Large / 29-inch | 786044583463 | B25149CXXRGDFXCE66600 | 210000023991 |
| Emerald / Small / 29-inch | 786044582985 | B25149CSMPEMFXCE66600 | 210000023907 |
| Emerald / Medium / 29-inch | 786044582800 | B25149CMDPEMFXCE66600 | 210000023913 |
| Emerald / Large / 29-inch | 786044582626 | B25149CLGPEMFXCE66600 | 210000023919 |
| Emerald / X-Large / 29-inch | 786044583166 | B25149CXLPEMFXCE66600 | 210000023925 |
| Turquoise / Small / 29-inch | 786044583043 | B25149CSMPTUFXCE66600 | 210000023937 |
| Turquoise / Medium / 29-inch | 786044582862 | B25149CMDPTUFXCE66600 | 210000023943 |
| Turquoise / Large / 29-inch | 786044582688 | B25149CLGPTUFXCE66600 | 210000023949 |
| Turquoise / X-Large / 29-inch | 786044583227 | B25149CXLPTUFXCE66600 | 210000023955 |
| Turquoise / XX-Large / 29-inch | 786044583401 | B25149CXXPTUFXCE66600 | 210000023961 |
