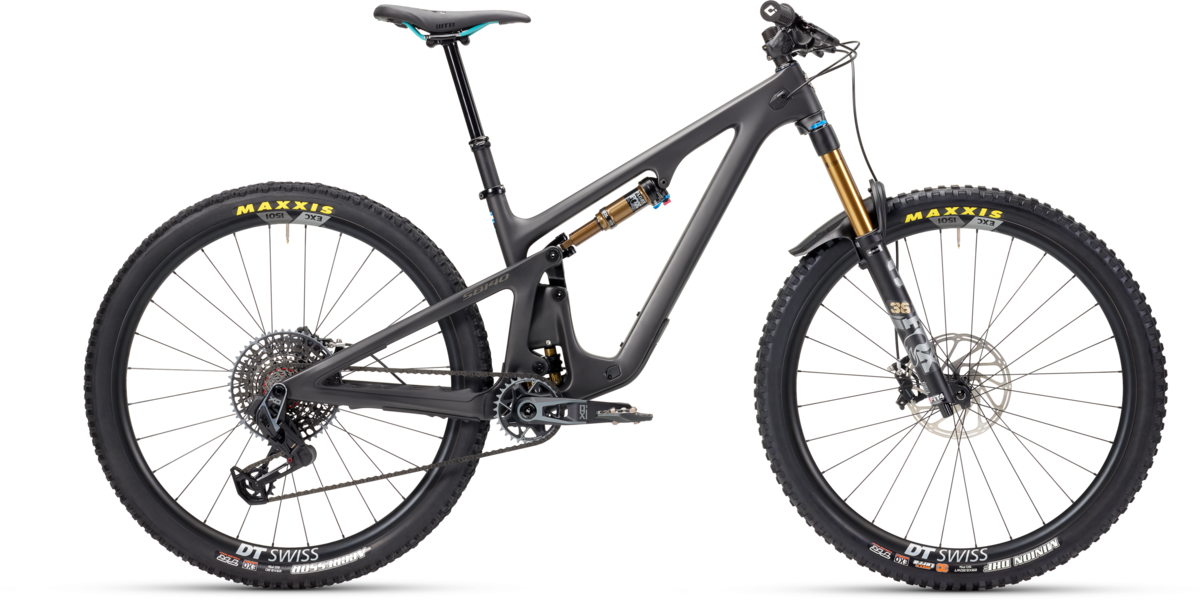

Yeti Cycles SB140 T-Series T3 X0 T-Type EXC Carbon Wheels

Yeti Cycles SB140 T-Series T3 X0 T-Type EXC Carbon Wheels
  • Color: Black/Grey Decal
  • Color: Emerald
  • Color: Turquoise
$9,800.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rail, and the air. The utterly unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule. The mountain bike.

Sizes:
FRAME SIZESMALLMEDIUMLARGEX-LARGEXX-LARGE
SEAT TUBE LENGTH (mm) 365 400 440 470 485
EFFECTIVE TOPTUBE LENGTH (mm) 571 602 623 650 670
HEADTUBE ANGLE 65.4° 65.4° 65.4° 65.4° 65.4°
EFF. SEAT TUBE ANGLE 77.5° 77.5° 77.5° 77.4° 77.4°
ACTUAL SEAT TUBE ANGLE 72.2° 72.6° 72.8° 73.2° 73.7°
CHAINSTAY LENGTH (mm) 436 438 440 442 444
WHEELBASE (mm) 1184 1217 1242 1273 1300
ESTIMATED BB HEIGHT (mm) 339 339 339 339 339
STANDOVER (mm) 722 729 733 735 740
HEADTUBE LENGTH (mm) 92 95 100 112 134
FORK AXLE TO CROWN (mm) 565 565 565 565 565
FORK OFFSET (mm) 44 44 44 44 44
STACK (mm) 614 617 621 631 651
REACH (mm) 435 465 485 510 525
FRONT CENTER (mm) 748 779 802 831 856
VERTICAL FORK TRAVEL (mm) 136 136 136 136 136
Sizes:
FRAME SIZERIDER HEIGHT (cm)RIDER HEIGHT (in)
SMALL 155 cm - 170 cm 5’1” - 5’7”
MEDIUM 165 cm - 180 cm 5’5” - 5’11”
LARGE 178 cm - 191 cm 5’10” - 6’3”
X-LARGE 185 cm - 201 cm 6’1” - 6’7”
XX-LARGE 195 cm - 210 cm 6'5" - 6'11"

Specs

Frame TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Fork FOX FACTORY 36 GRIP X2/160MM
Rear Shock FOX FACTORY FLOAT X
Wheels DT Swiss EXC 1501 Carbon
Tires Front: MAXXIS MINION DHF 2.5 EXO
Rear: MAXXIS MINION DHR II 2.4 EXO
Bottom Bracket SRAM DUB BSA 73
Crankset SRAM X0 EAGLE TRANSMISSION 30T 170MM
Shifters SRAM AXS POD CONTROLLER
Rear Derailleur SRAM X0 EAGLE AXS TRANSMISSION
Cassette/Freewheel SRAM X0 EAGLE TRANSMISSION 10-52
Chain SRAM X0 EAGLE TRANSMISSION FLATTOP
Brakes SRAM CODE RSC
Rotors SRAM CENTERLINE 200/SRAM CENTERLINE 180
Handlebars YETI CARBON 35X780MM
Tape/Grips ODI ELITE PRO
Stem BURGTEC ENDURO MK3 35X50MM
Headset CANE CREEK 40 INTEGRATED
Seatpost FOX TRANSFER 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM
Saddle SILVERADO CUSTOM
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Black/Grey Decal / Small / 29-inch 786044584279 B25149TSMRGDFXTE365W0 210000023811
Black/Grey Decal / Medium / 29-inch 786044583999 B25149TMDRGDFXTE365W0 210000023821
Black/Grey Decal / Large / 29-inch 786044583715 B25149TLGRGDFXTE365W0 210000023831
Black/Grey Decal / X-Large / 29-inch 786044584552 B25149TXLRGDFXTE365W0 210000023841
Black/Grey Decal / XX-Large / 29-inch 786044584835 B25149TXXRGDFXTE365W0 210000023851
Emerald / Small / 29-inch 786044584071 B25149TSMPEMFXTE365W0 210000023861
Emerald / Medium / 29-inch 786044583791 B25149TMDPEMFXTE365W0 210000023871
Emerald / Large / 29-inch 786044583517 B25149TLGPEMFXTE365W0 210000023881
Emerald / X-Large / 29-inch 786044584354 B25149TXLPEMFXTE365W0 210000023891
Turquoise / Small / 29-inch 786044584170 B25149TSMPTUFXTE365W0 210000023761
Turquoise / Medium / 29-inch 786044583890 B25149TMDPTUFXTE365W0 210000023771
Turquoise / Large / 29-inch 786044583616 B25149TLGPTUFXTE365W0 210000023781
Turquoise / X-Large / 29-inch 786044584453 B25149TXLPTUFXTE365W0 210000023791
Turquoise / XX-Large / 29-inch 786044584736 B25149TXXPTUFXTE365W0 210000023801
